Create Custom Field
The Create Custom Field form is used to create a new Custom Field on the application server to which the user is connected.
-

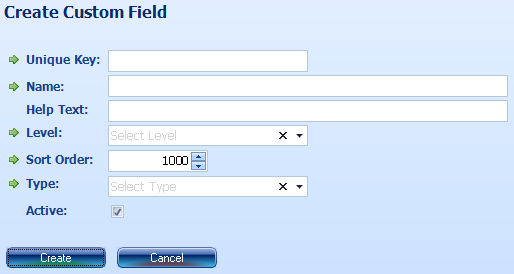

Figure 1:Create Custom Field form
Fields
- Unique Key
20 - A short string consisting of upper case characters, lower case characters, and numeric digits that uniquely distinguishes a Custom Field from all others. Special characters and spaces may not be used in a Unique Key.
- Name100
- The name of a Custom Field.
- Help Text512
- Instructive text to help data entry personnel to enter meaningful values into Custom Fields.
- Level
- The TariffShark element to which a Custom Field applies. Valid values are Filing, Tariff, Tariff Database, Tariff Record, and Tariff Record Version.
- Sort Order
- Specifies the order in which multiple Custom Fields belonging to the same Level will appear within the TariffShark user interface. Custom Fields are presented in lower Sort Order to higher Short Order sequence.
- Type
- The type of data that will be stored in a Custom Field. For example, "Short String", "Integer", or "Date".
- Active?
- Active Custom Fields participate fully in TariffShark (for example, users may update and view their values). Inactive Custom Fields are omitted from the TariffShark user interface (as if they didn't exist).
Action Buttons
- Creates the new Custom Field
- Closes the form without saving data to the application server
SmartBar Commands
None available.
