Dashboard

The Dashboard screen displays status information about the data in TariffShark. First of all, it helps users to manage the Status values of their Filings by highlighting those that appear to have stale Status values. The "Draft Filings" and "Filed Filings" tabs provide this information. Secondly, it reports the status of TariffShark TRV Queue processing on the Processing Queue and Failed Processing tabs.

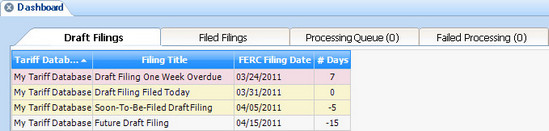

Figure 1:Dashboard: Draft Filings tab

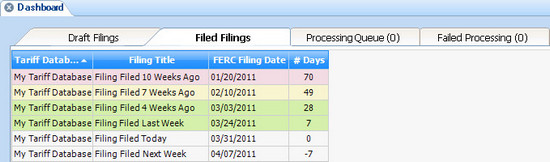

Figure 2:Dashboard: Filed Filings tab

Figure 3:Dashboard: Processing Queue tab

Figure 4:Dashboard: Failed Processing tab

Fields

Draft Filings Tab

Tariff Database
Title of the Tariff Database in which the draft Filing is located
Filing Title
Title of the draft Filing
FERC Filing Date
Expected date on which the draft Filing will be filed with FERC
# Days
Number of days until the FERC Filing Date. If the number of days displayed is negative, that means that the FERC Filing Date is in the future.
The default color of a row in the grid is white, which appears when a draft Filing is more than 7 days in the future.
A row in the grid is yellow when a draft Filing is due to be filed within the next 7 days.
A row in the grid is red when a draft Filing is past its FERC Filing Date.

Filed Filings Tab

Tariff Database
Title of the Tariff Database in which the filed Filing is located
Filing Title
Title of the filed Filing
FERC Filing Date
Date the Filing was filed with FERC
# Days
Number of days since the FERC Filing Date. If the number of days displayed is negative, that means that the FERC Filing Date is in the future.
A row in the grid is white when a filed Filing's FERC Filing Date is today or in the future.
A row in the grid is green when a Filing was filed within the last 30 days.
A row in the grid is yellow when a Filing was filed between 31 and 60 days ago.
A row in the grid is red when a Filing was filed more than 60 days ago.

Processing Queue Tab

Queue ID
Identifying number for the queue entry
Tariff Database
Title of the Tariff Database in which the Tariff Record Version is located
Tariff
Title of the Tariff in which the Tariff Record Version is located
Version
Version number of the Tariff Record Version
Description
Description of the Tariff Record Version
Title
Title of the Tariff Record Version
Narrative Name
Narrative Name of the Tariff Record Version
Option
Option letter of the Tariff Record Version. Refer to the FERC SOC Implementation Guide for complete details about options.
Filing
Title of the Filing
Retries Left
Number of retries remaining for processing the Tariff Record Version's documents
Status
Status of the queue entry

Failed Processing Tab

Queue ID
Identifying number for the queue entry
Tariff Database
Title of the Tariff Database in which the Tariff Record Version is located
Tariff
Title of the Tariff in which the Tariff Record Version is located
Version
Version number of the Tariff Record Version
Description
Description of the Tariff Record Version
Title
Title of the Tariff Record Version
Narrative Name
Narrative Name of the Tariff Record Version
Option
Option letter of the Tariff Record Version. Refer to the FERC SOC Implementation Guide for complete details about options.
Filing
Title of the Filing
Retries Left
Number of retries remaining for processing the Tariff Record Version's documents
Status
Status of the queue entry
Requeue
Click the "Requeue" button in this column to resubmit the Tariff Record Version for processing. This essentially moves the TRV from the Failed Processing tab over to the Processing Queue tab.
ViewContent
Click the "View" button in this column to view the marked content of the Tariff Record Version that failed processing

Action Buttons

None available

SmartBar Commands

Filing Tasks
Details
Update
Tariff Record Version Tasks
Details
